HZS25 small automatic stationary concrete batching plant for wet premix concrete saving space easy operate

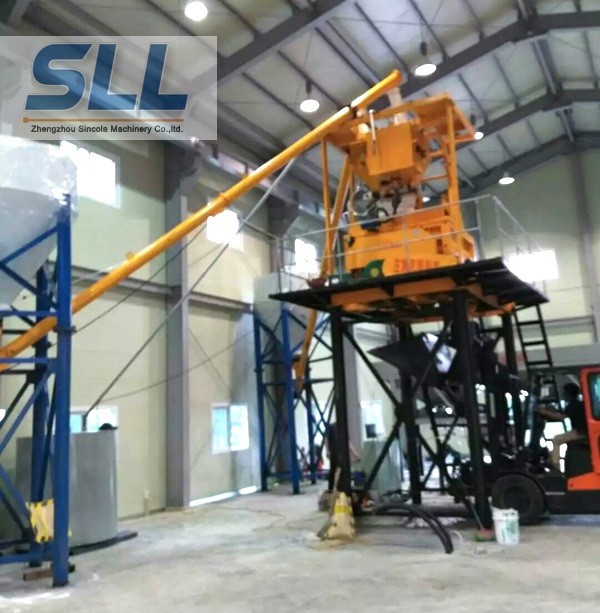

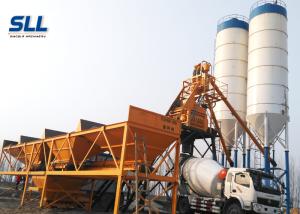

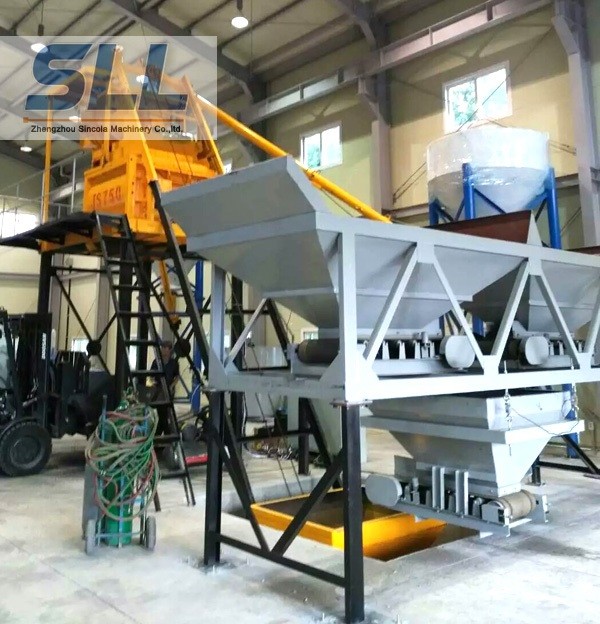

HZS25 concrete batching plant is a simple concrete mixing plant, equipped with JS500 concrete mixer, PLD800 aggregate bins. This concrete batching plant uses an advanced supercharged cover drainage system and low-dose metering technology, mixing efficiency, measurement speed, can be widely used in highways Bridges and small and medium sized construction sites and prefabricated plants.
Features
1. High Quality, Reliability and Safety
2. High Accuracy Digital Weighing System
3. Integrated Design, Compact Structure,Space Saving
4. All Component Equipments are of China Famous Brand.
5. High Layout Flexibility, Fast and Easy Installation and Remove
6. Low Dust, Low Noise, High De-dusting Area ,High Efficiency and Envirometal Protection with Electric Pulse De-duster
Technical Parameters
| Model | HZS25 |
| Rated Productivity | 25m3/h |
| Main Mixer | JS500 |
| Batching Unit | PLD800 |
| Max. Aggregate Diameter | 60/80mm |
| Discharging Height | 3.8m |
| Aggregate Conveying Mode | Flat Bet Conveyor |
| Aggregate Weighing Precision | 1500Kg ±2% |
| Cement Weighing Precision | 300Kg ±1% |
| Water Weighing Precision | 200Kg ±1% |
| Additive Weighing Precision | 30Kg ±1% |
| General Power | 45Kw |
| Total Weight | 10T |
| Outline dimension (L*W*H) | 1.54m *5.6m *5.9m |
| Control Mode | Computer Automation |
Main parts
1. JS500 twin-shaft concrete mixer
2. PLD800 aggregate batcher
3. welding type 50T or bolted type 100T cement silo
4. Screw conveyor 219mm*8m
5. water, cement and additive scales
6. Air compressor
7. Fully automatic computer control system
Delivery & Packaging & Payment Terms
Packaging: Standard exporting packaging by 2×40’HQ.
Delivery Time: 20-25 days after deposit is received.
Payment term: 30% to pay by T/T as advanced payment, 70% to pay by T/T before delivery.
Our Services
1. Pre-sale service:
Sincola machinery will give you suggestive productivy, as your request to make a blueprint for you, then make the accuracy quotation, let you know all the parts of the concrete batching plant.
2. Sale service:
Our advanced technicians will be sent your jobsite to guide operation and installation. Then teach how to use the machines, field test accuracy, make sure the plant is all well down.
3. After-sale service:
We give you one year warranty, when something wrong in the plant, we will teach you how to fix it, if needs, our engineers can come to your work site to help you fix it.
FAQ
1. Are you a trading company?
A: No, we have our own factory, factory + trading company
2. How is your waranty?
A: we provide 12 months for our plant (not include wear parts).
3. How to install it?
A: Our professional engineer will install it to your city.
4. How is your after-sales service?
A: 24 hours and 7 days service.
