HZS90 belt type stationary concrete mixing plant for large scale construction building
belt type stationary concrete mixing plant include JS1500 concrete mixer machine, PLD2400 batching machine with three aggregate bins, cement silo (optional), screw conveyor and so on. It can mix dry hard concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and vavious mortar.
Technical Parameters
| Model | HZS90 |
| Rated Productivity | 90m3/h |
| Main Mixer | JS1500 |
| Batching Unit | PLD2400 |
| Max. Aggregate Diameter | 80mm |
| Discharging Height | 3.8m |
| Aggregate Conveying Mode | Flat Belt Conveyor |
| Aggregate Weighing Precision | ±2% |
| Cement Weighing Precision | ±1% |
| Water Weighing Precision | ±1% |
| Additive Weighing Precision | ±1% |
| General Power | 75Kw |
| Outline dimension (L*W*H) | 58555*12376*18704mm |
| Control Mode | Computer Automation |
concrete mixing plant features
1. High Quality, Reliability and Safety
2. High Accuracy Digital Weighing System
3. Integrated Design, Compact Structure,Space Saving
4. All Component Equipments are of China Famous Brand.
5. High Layout Flexibility, Fast and Easy Installation and Remove
6. Low Dust, Low Noise, High De-dusting Area ,High Efficiency and Envirometal Protection with Electric Pulse De-duster
Concrete batching equipment Application
1. Dry hard concrete
2. Plastic concrete
3. fluidity concrete
4. lightweight aggregate concrete and various mortar
Main parts
1. JS1500 twin-shaft concrete mixer
2. PLD2400 aggregate bins
3. welding type or bolted type cement silo
4. Screw conveyor 219mm*8m
5. water, cement and additive scales
6. Air compressor
7. Fully automatic computer control system PLC
Delivery & Packaging & Payment Terms

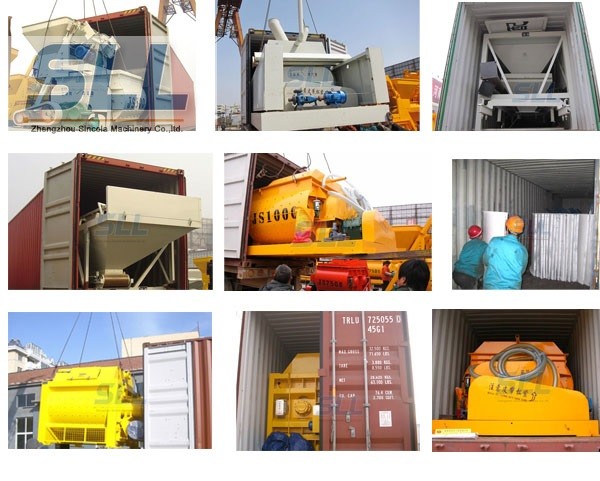

Packaging: Standard exporting packaging by 40’HQ container.
Delivery Time: 20-25 days after received your payment
Payment term: 30% to pay by T/T as advanced payment, 70% to pay by T/T before delivery.
Excellent Mixing Performance
1. Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform;
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts;
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.
5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators. 6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements
Our Services
1. Pre-sale service:
Sincola machinery will give you suggestive productivy, as your request to make a blueprint for you, then make the accuracy quotation, let you know all the parts of the concrete batching plant.
2. Sale service:
Our advanced technicians will be sent your jobsite to guide operation and installation. Then teach how to use the machines, field test accuracy, make sure the plant is all well down.
3. After-sale service:
We give you one year warranty, when something wrong in the plant, we will teach you how to fix it, if needs, our engineers can come to your work site to help you fix it.
FAQ
1. Are you a trading company?
A: No, we have our own factory, factory + trading company
2. How is your waranty?
A: we provide 12 months for our plant (not include wear parts).
3. How to install it?
A: Our professional engineer will install it to your city.
4. How is your after-sales service?
A: 24 hours and 7 days service.
