Automatic wall cement mortar sprayer tools clean wall tools cement plastering machine
Introductions
The cement sprayer can save water, save material, but lower cost, simple operation, no need scaffolding, don't have to mobile devices, need not repair the grounds, free to spray Angle, roof, with fast speed, high efficiency, low labor intensity, a multi-function sprayer can easily spray per hour 1.5 cm thick concrete area of 200 square meters.Setting wall surface roughening shotcrete, aerated block walls of hair spray can easily do it every day more than 10000 square meters.
Application
Building internal and external walls, ceiling roof, wall steel mesh reinforcement, wall ramming starting point, high speed river bank slope protection, tunnel, subway, garden rockery, brick model, steel structure protection layer, etc.
1.The Plastering Machine is a new desinged multi-functional plastering equipment.
2.The Plastering Machine can be used for pumping and spraying ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar.
3.The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material, water soluble etc.
Parameter:
| Model | KLW-120 Plaster Machine |
| Capacity | 100~120m2/h(mortar) 200~3002/h(putty) 3m3/h(grouting) |
| Rated working pressure | 4~6MPa |
| Motor power | 4.4kw |
| Main electricity motor | 3phase, 380v, 5.5kw |
| Horizontal delivery dist. | 30m |
| Max. aggregate size | 5mm |
| Vertical conveying dist. | 10~15m(mortar)/25~30m(putty) |
| Dimensions | 1300*650*900 (mm ) |
Features:
1. Small volume, light weight, convenient in indoor and outdoor mobile, construction;
2. Screw pump for pumping materials, guarantee the ejected material evenly, continuous;
3. Machine with high efficiency, low noise;
4. Module design, simple operation, easy maintenance.
5. The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
Working Principle:
1. Turn on the power, press the button, the screw pump that is working. If you turn the reverse, press the stop button to stop. Adjust the power and down at the beginning, change the good turn. Such as the opposite direction is not expected.
2. In the delivery hose into the injection of a small amount of water, or with a screw pump water wet delivery hose, and then the tube of water gradually discharged from the export. Drainage should be clean, the tube shall not be retained
3. Connect the duct to the mortar tube side by side. The air duct is connected to the gun.
4. Mix the material evenly into the hopper (can be used with the powder machine).
5. Press the start button to start the shot. In the work, combined with the regulation of air volume, can make the best spray quality.
6. Adjustable speed of the screw pump, the output flow of 0-8 liters / min, in the work, as long as the return adjust to the output speed that construction requirements.
7. The mixing material must be continuously added to the hopper to ensure the continuity of the spray.
8.Spray work to be suspended, press the stop button can be, can make the operation more convenient, you can use the following methods for remote control: the middle of the box to the left is the manual control switch.
global agent recruitment.pdf

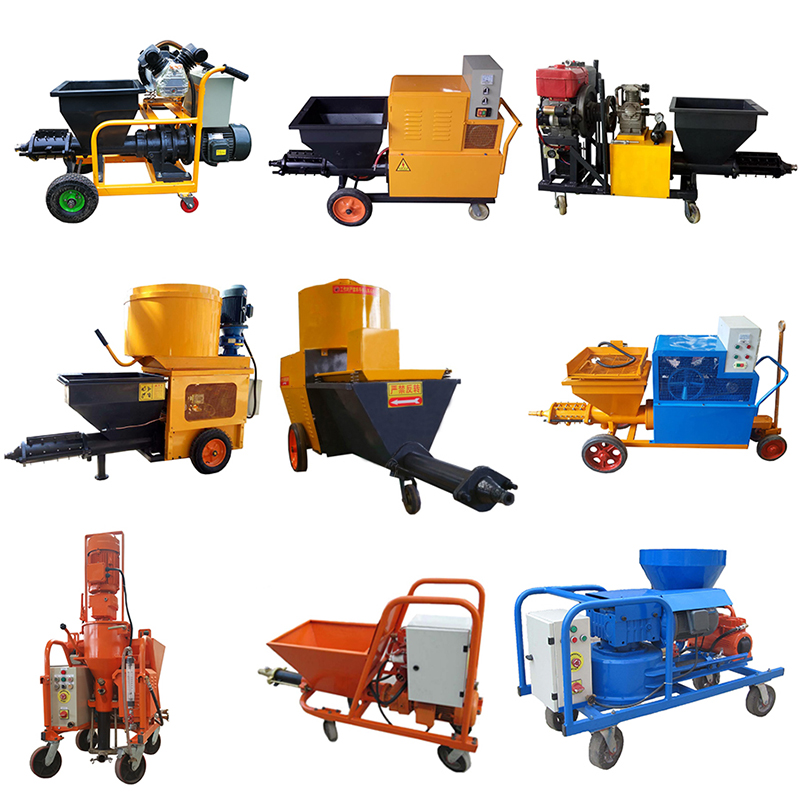

Pictures:
